Lecture 03 - Backend

posted over 1 year ago ⋄ 14 min read

Lecture 03 - Backend#

News and Housekeeping#

Revisiting Lecture 2 - High Level Project Overview#

Basic Architecture#

If you want to view these (and a couple more) diagrams, you can do that here

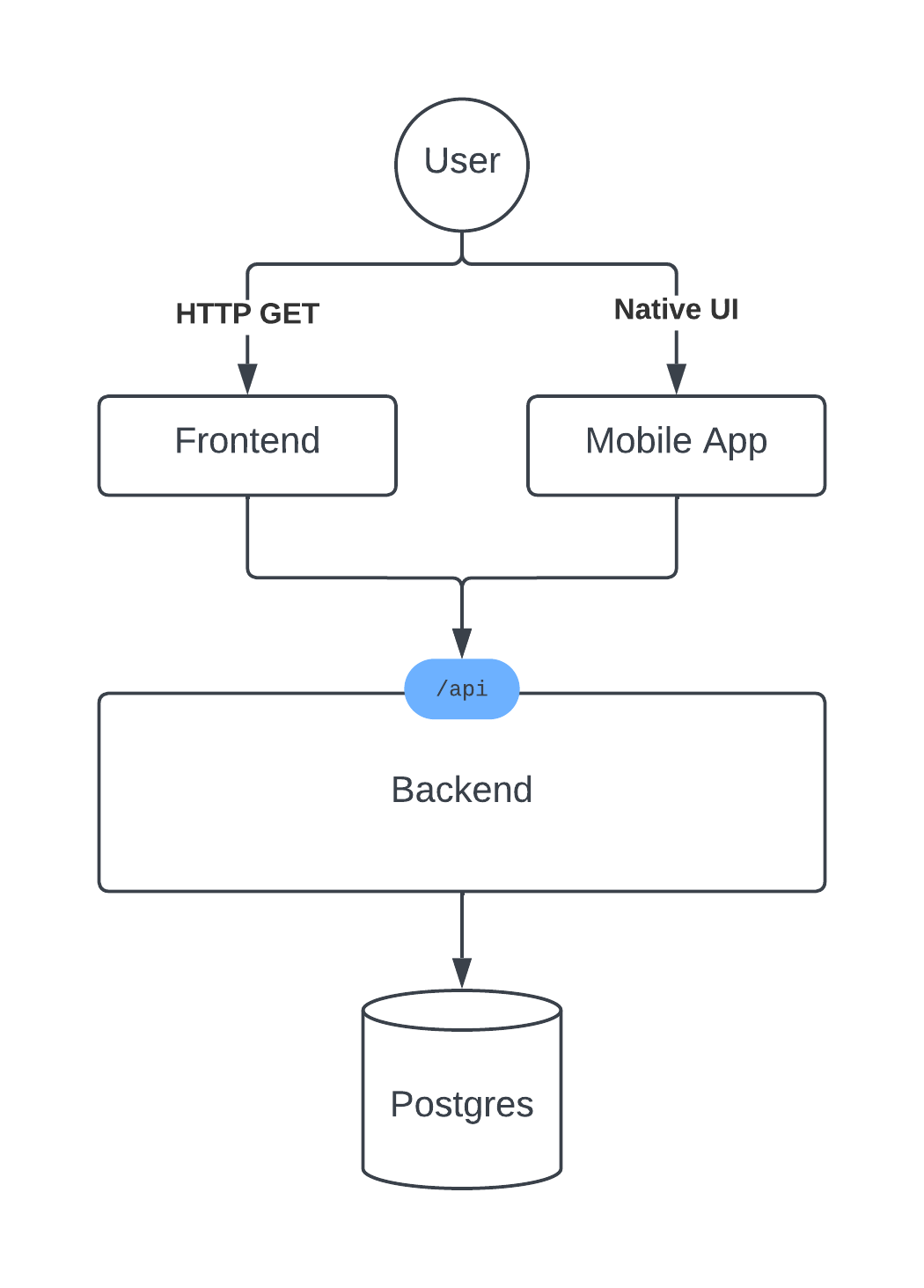

Here is a simple example of what an app architecture might look like:

There are a couple things happening here:

  1. The user is interacting with an app, either a mobile app or a web app.
  2. The web app communicates to a backend via HTTP requests.
  3. The backend listens for HTTP requests, makes queries to a database (in this case, Postgres), and returns a response to the frontend.

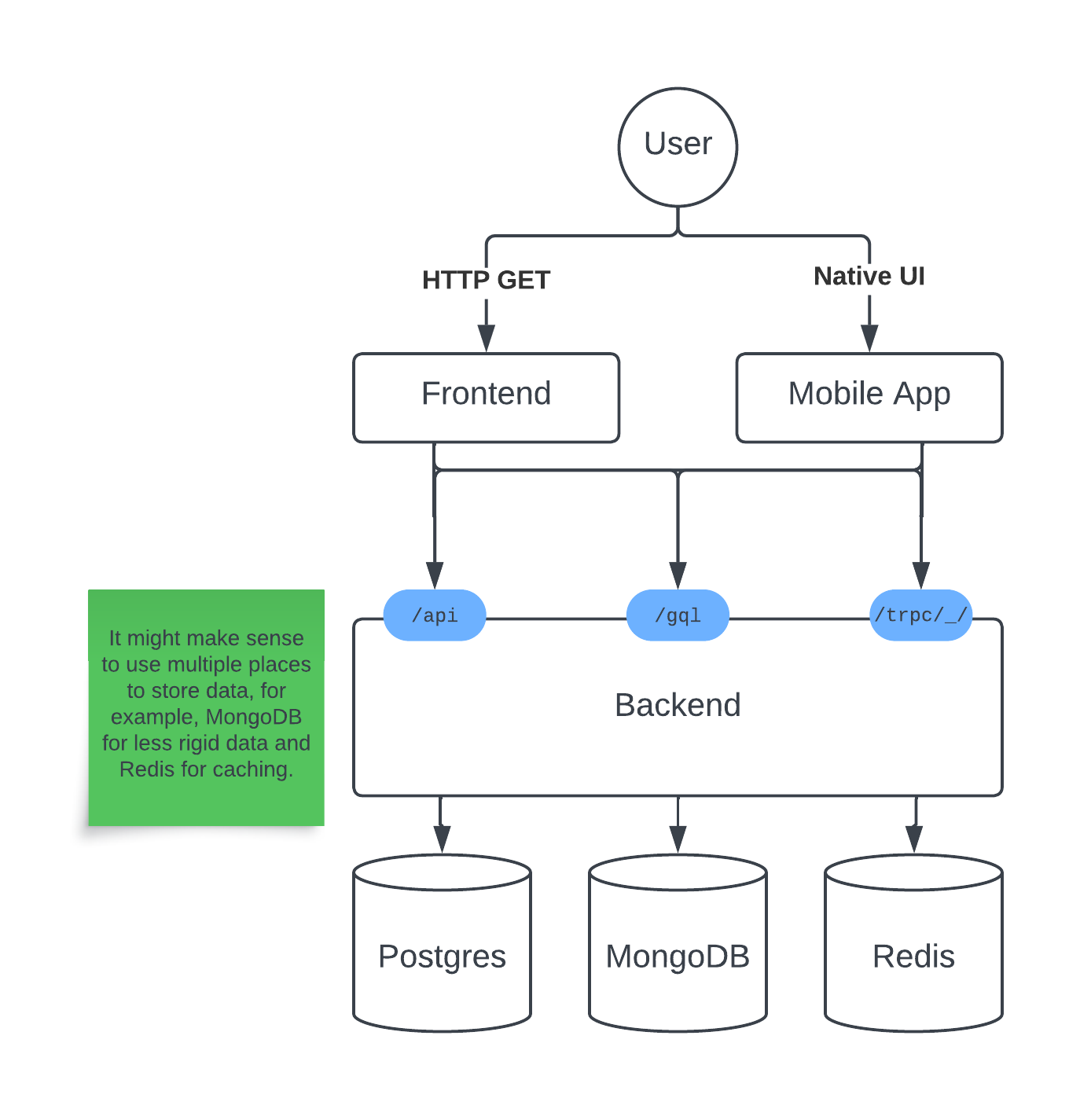

This has been the standard for a little while, but is definitely not the only way to go about it. For example, you could have a MongoDB behind the backend as well, and want to query that using GraphQL queries instead. Or you could want to make things more performant by using a cache like Redis.

It might look something like this, once everything is set up:

I think it’s worth understanding what each of the available technologies are so that you all are aware of them and can make an informed decision (or pivot, as needed). Let’s talk about each of them, and why I chose the ones that I did last time.

Monorepo vs Multiple Repos#

Monorepos mean storing all of your code (regardless of if it’s a mobile app, a webpage client, a server, or a machine learning model) in the same codebase. Google switched to use a monorepo and found many benefits that are outlined here. Some of the advantages listed on page 7 are:

I’ve bolded some that may be useful to you and added my thoughts in parenthesis, even if you aren’t working in an environment with many engineers or teams.

Here are some of the tradeoffs they list on page 8:

Here is a cool video about the options available and what the point of them are if you are interested in learning more. (thanks to Connor for sharing in Slack!)

One last note from the article that I thought was pertinent:

a monolithic codebase in no way implies monolithic software design

This by no means says that you must not build a monolithic product, either. Maintaining many services and such takes additional effort and overhead. I encourage you to keep a mostly monolithic model while you are getting off the ground, and then shift things to be separated into concerns and bottlenecks when those arise. It is very easy to get caught in the hype around microservices and such, but those are rarely worth it from the beginning.

Packages vs Apps#

Backend to me is the place to start; until you have a good idea what your data is going to look like and how you are going to interact with that data, you will have a hard time building a relevant frontend.

There are a couple choices here to be made:

Let’s talk through these.

Tech Stack#

I don’t have as much of a stake in this since I work with at least 3 different tech stacks regularly:

Some other ones that I have seen are:

Ultimately what you decide should be something that you are familiar enough with to move quickly, or learn something new that you think will help you move quicker than what you know. I think if you don’t have a preference you probably should be using the t3 stack which is based around Next.js and Vercel, but that is not a requirement. I hope by this point you have picked one.

Most of these will have a backend portion, a frontend portion, a database of some sort (or even multiple sorts), and some hosting provider at minimum.

Communication Technologies#

One of the most fundamental pieces of architecture beyond the tech stack is what is used to communicate between clients, servers, and other servers. This is normally somewhat related to how you store that data, since some communication types are better with certain types of storage.

HTTP and REST#

HTTP, or Hypertext Transfer Protocol, is the protocol that the web is built on. It’s made up of verbs, like GET, POST, PUT, and DELETE. REST, or REpresentational State Transfer, is an architecture built on top of HTTP that dictates how resources and verbs should be constructed. For example, a RESTful call might look like this:

GET /users

And this might return a list of users. One implementation might look like this, just returning a list of user IDs and allowing the client to make additional calls for the ones they are interested in:

[
  {
    "id": 1
  },
  {
    "id": 2
  },
  {
    "id": 3
  }
]

A better implementation might give back enough information to build an application, avoiding the N+1 problem, for example:

[
  {
    "id": 1,
    "name": "John Doe",
    "email": "[email protected]"
  }
]

Some libraries will also let you eagerly go and fetch portions of related models, or you can write your own queries to do this. This can also help with the N+1 problem, allowing you to fetch all of the data you need in one query, both to the server, and to the database.

To mutate data, you’ll use other verbs. POST (create without a preset ID) or PUT (create with a preset ID) requests are used to add data, PATCH requests are used to update data, and DELETE requests are used to delete data. Most requests other than GET requests will allow you to send data in the body of the request, like this:

POST /auth/login
{
    "username": "hunter",
    "password": "hunter2"
}

Some APIs communicate with other data types, like XML:

<users>
  <user>
    <id>1</id>
    <name>John Doe</name>
    <email>[email protected]</email>
  </user>
</users>

And there are other, less frequent data types as well, like binary data.

You might run into cases where it makes sense to only have specific fields, and many APIs will implement this by allowing you to specify the fields you want in the query string, like this:

GET /users?fields=id,name

You might implement this in your database like this:

SELECT id, name FROM users;

Or in an ORM like Prisma like this:

prisma.user.findMany({
  select: {
    id: true,
    name: true,
  },
});

You probably should not just pass these as raw strings to your database, as this can open you up to SQL injection attacks. Instead, you should use a library or ensure that you are sanitizing your inputs, or at least making sure that the fields being requested are safe ones.

Implementing this can save you on bandwidth, but if you find yourself filtering very frequently, you might be better off with the next type of communication, GraphQL.

GraphQL#

GraphQL allows you to query just the data you want from a server. That means it’s a lot more flexible for unstructured data, but it means that if you are using a structured data source (like a SQL database), you will need to do complex queries to get the data you want.

That means that when using GraphQL, you might want to consider using a document data store like MongoDB and expose the entire documents to the GraphQL server, or use a graph database like Neo4j.

GraphQL queries look like this:

query {
  users {
    id
    name
    email
  }
}

Some servers will allow you to make the request as a query, especially when serving the GraphQL server over HTTP:

/query?={users{id,name,email}}

To modify data, GraphQL uses mutations that are a little bit like stored procedures in a database; you give parameters to a preset mutation, and then can execute that mutation:

mutation CreateUser($name: String, $email: String) {
  # this is the data you are using to create the user
  createUser(name: $name, email: $email) {
    # and this is the data you are querying back
    id
    name
    email
  }
}

GraphQL is largely built around having a published schema, which can result in some really good developer experience, especially if you want to convince people to build against your platform.

GraphQL shares some with tRPC since the schema is public and typesafe; having both of those benefits baked into your API makes the experience of developing on it both really fast and really easy. Things like Swagger can bring this to a REST API if you have gone that route, but the other two methods on top of HTTP have that automatically.

RPC and tRPC#

RPC stands for Remote Procedure Call. It’s a generic framework for describing how a client (even if that client is a server itself) should talk to a server (or in other words, a remote), triggering some code execution on that server, or in other words a procedure call. A popular implementation is gRPC which is Google’s implementation, and has been used fairly broadly, especially when servers are talking to other servers.

tRPC is a recent entry, but a really cool way to work quickly with schema changes and such. It’s built on top of HTTP, so it still uses the same verbs under the hood, but takes the same structure.

It allows you to sync your schema between clients and servers, including the type information and automatic validation. Last time I mentioned in my notes about what creating a schema looks like; that can be found [here](./Lecture 2 - Project Setup.md#Communicating between Server and Client with tRPC).

I have opted to use this since it’s a lot more straightforward than creating routers, dealing with requests, etc., when the main thing I care about is writing the actual procedures and logic. The other two generally either require boilerplate, or require knowing about the right niche technology that can turn a database into a REST API or a GraphQL server.

Honorable Mentions - Sockets#

Sockets are a rather complicated way to communicate between a client and a server, but the benefit is that they are real time. That means that you can send data from the server to the client without the client having to request it. This is useful for things like chat applications, or applications that need to update in real time, like a stock ticker.

GraphQL has subscriptions which work either over HTTP or sockets and allow for the same realtime updates that sockets will allow you. They come with the disclaimer that they should be used for small, incremental updates, which makes sense given that’s what sockets are good at.

Summary#

Communication TypeDescriptionStorage Type
HTTP and RestSimple verbs to get and manipulate dataRelational DB (mySQL, PostgreSQL)
GraphQLA published schema that can be queriedDocument DB (MongoDB), Graph Database (Neo4j)
tRPCA set of procedures to get and mutate dataRelational DB
SocketsRealtime communication with a serverApplication State, Redis

ORMs and Queries#

ORMs are pretty divisive, and I think these are worth a read. Some of them are more biased than others:

Ultimately, how you get data out of your data store is up to you. I find having a layer on top of the data that lets me manipulate the data is useful (even when using MongoDB or other NoSQL data stores), especially when I can use the same mapping to generate database queries and migrations (mainly for relational data stores). However, that does not need apply to every project, and some may be more performant or flexible just using queries on whatever storage method you chose.

ORMs tend to be a place where you get a decent amount of choice regardless of stack. Javascript is approaching 10 available ORMs at the time of writing, and many of them (TypeORM, Drizzle, Prisma) have pretty popular adoption.

I like Primsa because it gives me type safe queries, and lets me move quickly in development using the push command, while still keeping me safe in production using migrations.

xml.tsx

import { NextApiRequest, NextApiResponse } from "next";
import { prisma } from "db/lib/prisma";


export default async (req: NextApiRequest, res: NextApiResponse<string>) => {
  const postList = await prisma.post.findMany();


  const postXml = postList.map(
    (post) => `<post>
        <title>${post.title}</title>
        <content>${post.content}</content>
        <likes>${post.likes}</likes>
    </post>`
  );


  res.setHeader("Content-Type", "text/xml").status(200)
    .send(`<?xml version="1.0" encoding="UTF-8"?>
    <posts>
      ${postXml.join("\n")}
    </posts>`);
};

If I wanted to implement some of the filtering I mentioned before, here is how I would do that:

import { NextApiRequest, NextApiResponse } from "next";
import { prisma } from "db/lib/prisma";


const AllowedFields = new Set(["title", "content", "likes"]);


export default async (req: NextApiRequest, res: NextApiResponse<string>) => {
  const filter = req.query["filter"];
  const parts = typeof filter == "string" ? filter.split(",") : filter;
  const selectFields = parts?.reduce((acc, curr) => {
    // Don't allow fields that I haven't explicitly
    // allowed into the select statement.
    if (AllowedFields.has(curr)) {
      acc[curr] = true;
    }
    return acc;
  }, {});
  // Ensure that we are actually selecting something,
  // otherwise select everything.
  const select =
    selectFields && Object.keys(selectFields).length > 0
      ? selectFields
      : undefined;


  const postList = await prisma.post.findMany({ select });


  const postXml = postList
    .map((post) =>
      // This is a clever way to deal with the {} type,
      // but it would probably be better to use a dedicated
      // library for converting a JS Object to XML.
      Object.entries(post)
        .map(([key, value]) => `<${key}>${value}</${key}>`)
        .join("\n")
    )
    .map((post) => `<post>${post.trim()}</post>`);


  res.setHeader("Content-Type", "text/xml").status(200)
    .send(`<?xml version="1.0" encoding="UTF-8"?>
    <posts>
      ${postXml.join("\n")}
    </posts>`);
};

I think that this is much cleaner using an external library for filtering, but this goes to show how it might still be a straightforward change to allow simple things to come through the request (and shows you how you might deal with things coming from the query parameters, too).

Here is an example from the koa ecosystem that does just that on a response level.
